Body: forged steel, hot dip galvanized
Hardware: galvanized steel
Cotter Pin: stainless steel

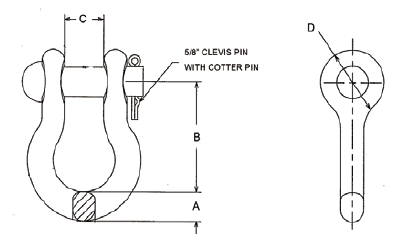

Anchor Shackle Specification:
| Part No. |
A |
B |
C |
D |
Weight |
| Inch |
Inch |
Inch |
Inch |
Kg / Pcs |
| D0712 |
1/2 |
1.82 |
0.8 |
1.300 |
0.360 |
| D0758 |
5/8 |
2.38 |
1 |
1.500 |
0.586 |
Applications of Power Fitting Anchor Shackles:
Power Transmission and Distribution:
Connects insulators to conductors and other hardware in overhead power lines. Secures guy wires to poles or towers.
Electrical Substations:
Links various power line fittings to structures and equipment in substations.
Construction and Infrastructure:
Supports heavy loads in lifting, rigging, and hoisting operations. Provides secure connections in structural support systems.
Telecommunication Towers:
Attaches cables and hardware components to towers for stability.
Industrial Applications:
Connects equipment and machinery in factories, plants, and industrial setups. Secures lifting and pulling systems in manufacturing or assembly processes.
Utility Pole Systems:
Anchors hardware and fittings to utility poles in electrical grids.
Where can buy Anchor shackle for poleline hardware?
Forged Anchor Shackle in distribution application are used for attaching sspension insulators to towers, yokes and double arming plates . Openings are enlarged to permit the use of two or more fittings.

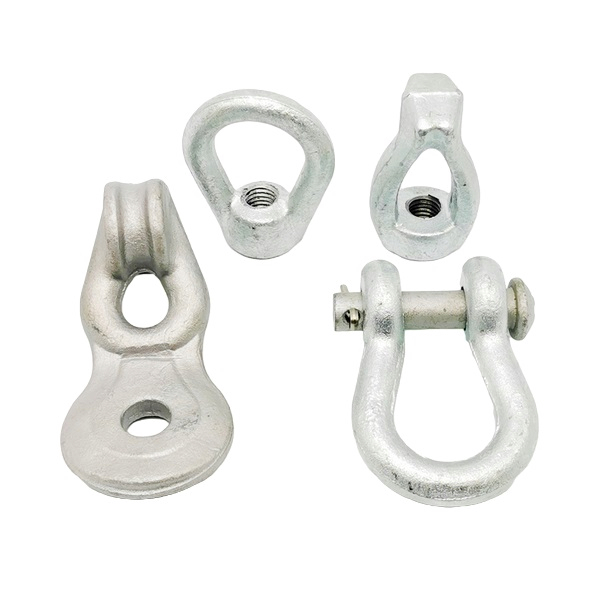

Yokelink Anchor Shackle used for attaching suspension-insulator units to the pole. Made from Drop forged steel and locked with stainless steel cotter key. The finish is Hot dip galvanized to meet ASTM A153 specification.
We can also provide Standard Bolt Type, Screw Pin Type per G-2130, G-209, G-210 Shackles are available. When you need Anchor Shackles, refer to above our catalog. We offer them in a full selection of sizes, provide the diameter or part number to get a quote on these Shackles, leave your message, or send us an email. You can also call us to get answers to your questions and place your order.
